Nuclear Magnetic Resonance (Liquid State 500MHz NMR)



BRUKER AVANCE III HD NMR 500 MHz
  • AV III HD one bay console with Amplifier 1H 100 Watt and X 300 Watt
  • Magnet Capacity – 11.7 Tesla.
  • Multinuclear 5mm BBFO probe which can analyze X nuclei from 109Ag to 31P, and 19F nuclei with and without proton decoupling.
  • Variable temperature possible ranging from -1500C to +1500C.
  • Auto sampler with 60 sample capacity.
  • Two dimensional (2D) NMR study.
  • Homonuclear: COSY, NOSEY, ROESY, TOCSY
  • Heteronuclear: HSQC, HMBC,HOESY
  • Selective (1D SELNOE) experiments.
  • Software: Topspin 3.2
  • Applications: Structure elucidation of Organic/Bio-organic compounds, kinetic study, NMR titrations, peptide applications.
  • In charge: Prof. V. S. Shinde

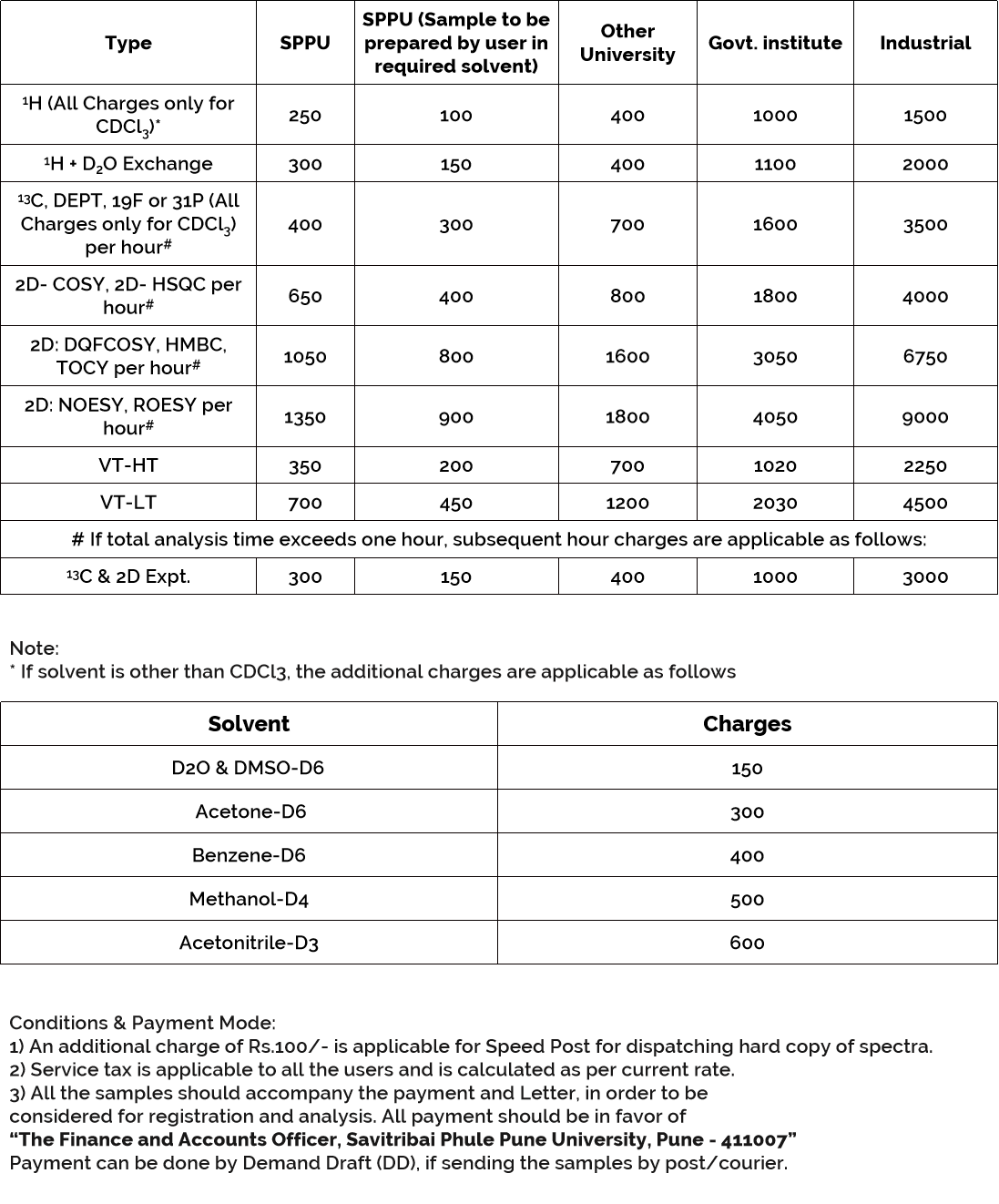

Charges for NMR Analysis:
